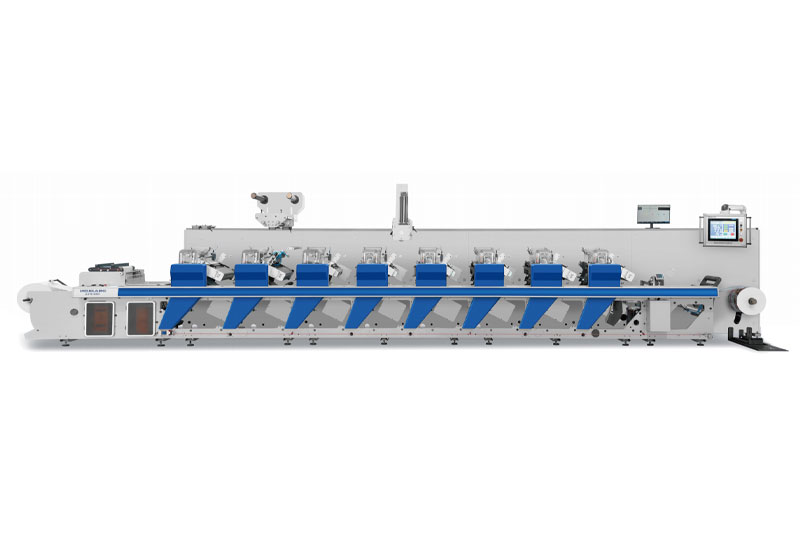

Flexo Printing Machine

Features

Model	ZJR-350W	ZJR-450W
Max. printing speed	180m/min	180m/min
Printing color	4-12 Colors	4-12 Colors
Max. printing width	350mm	450mm

Get a Quote PDF Datasheet

Product Details

MAIN FEATURES

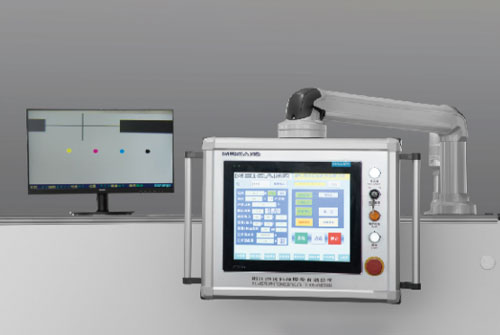

1. The whole machine adopts the latest servo control system and each printing unit is driven by independent servo motor. There are 19 servo motors in total for 8-color machine which ensure the accurate registration during high speed running.

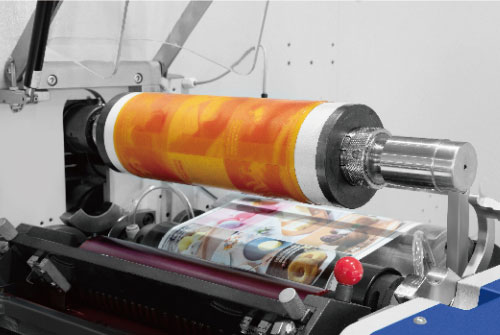

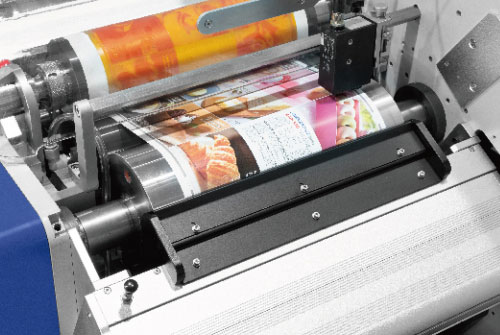

2. The printing roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design is largely improve the printing quality and reduces the maintenance.

3. Fast and easy pressure adjustment of printing or ink transferring: Printing roller run by bearer, it's not necessary to adjust the pressure when change the roller, or at most fine adjustment for special job.

4. Anvil roller equipped with water chiller, which is good for unsupported film material.

5. Suitable for printing variety film material, such as PET, OPP CPP Pp and so on.

TECHNICAL HIGHLIGHTS

19 Servo Motors In Total For 8color Machine

MAIN TECHNICAL PARAMETERS

Model	ZJR-350W	ZJR-450W
Max. printing speed	180m/min	180m/min
Printing color	4-12 Colors	4-12 Colors
Max. printing width	350mm	450mm
Max. web width	360mm	480mm
Printing repeat length	Z76-190 (241.3mm-603.25mm)	Z76-190 (241.3mm-603.25mm)
Max. unwinding dia.	900mm	900mm
Max. rewinding dia.	900mm	900mm
Dimensions(LxWxH)	101.562.45m	101.562.45m
(8 colors) Excluding optional features
