Automatic Label Inspection Machine

Features

Model	ZB-320
Slitting width	20mm-300mm
Total power	5KW
Power supply	380V/3P 50Hz
Machine weight	1450kgs

Get a Quote PDF Datasheet

Product Details

MAIN FEATURES

Fast speed, high accurate and easy operation, highly increased the final label quality and output.

ZB-320 Auto Label inspecting machine adopts latest (Germany) inspecting system. It can detect defective labels such as missing label, color differnces, bad registration and scratched labels.
This machine equips with inline slitting unit, has the characteristic of fast speed, high accurate and easy operation, highly increased the final label quality and output.

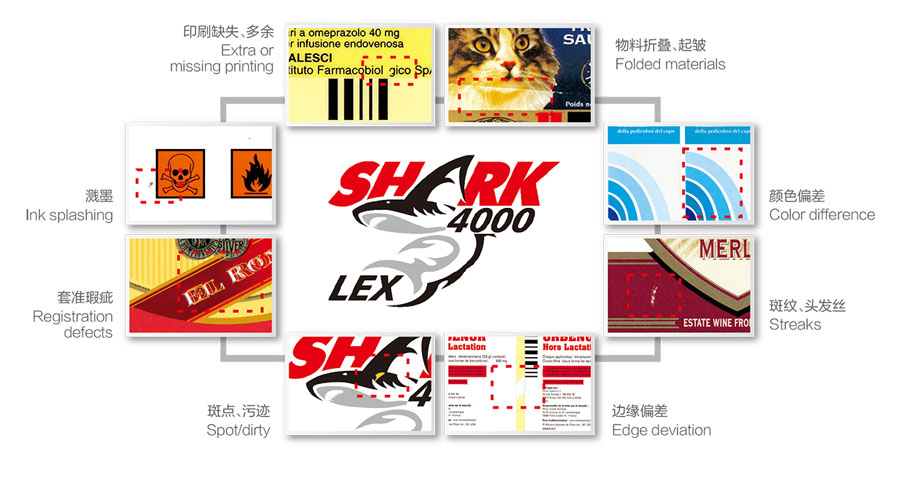

Typical Defect Category

Main Specifications

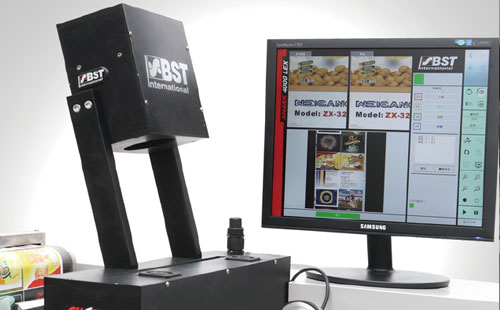

Camera	LCCD gray camera or color camera
Max Web Width	320mm
light	Scattering light and direct light, back light is optional
Max Axial Resolution	0.07mm, depends on different application
Circumferential Resolution	Speed under 100m/min, 0.07mm Speed under 300m/min, 0.3mm
Min Defecting Size	0.05 mm²
Material	Transparent or reflective material are workable
Data Communication	Modem or DSL connecting
Power	90V-132V,50/60Hz,400VA; 198V-264V,50/60Hz,400VA
Working temperature	0-40℃ humidity: 20%-80%， No coagulate
Stock temperature	-10~55℃

Main Technical Parameters

Model	ZB-320
Max. inspecting speed	160m/min
Max. web width	320mm
Max. unwinder dia	650mm
Max. rewinder dia	650mm
Slitting width	20mm-300mm
Total power	5KW
Power supply	380V/3P 50Hz
Machine weight	1450kgs
Dimensions(L×W×H)	2850×1000×1500mm
